Power Supplies

AJA offers a wide range of versatile power supplies that are optimized for magnetron sputtering applications. These power supplies are typically in stock and ready for shipment. For additional information and pricing, please contact AJA directly.

RF Generators /
Matching Networks

  • 100 W for RF bias and small sources

  • 300 W, 600 W and 1000W for RF magnetron deposition

  • Integral generator/matching network controller - minimal rack space

  • Software specifically for magnetron sputtering - intuitive operation

  • Programmable power limits

  • Cables included with either "N", "HN" or "7/16 DIN" coaxial connectors

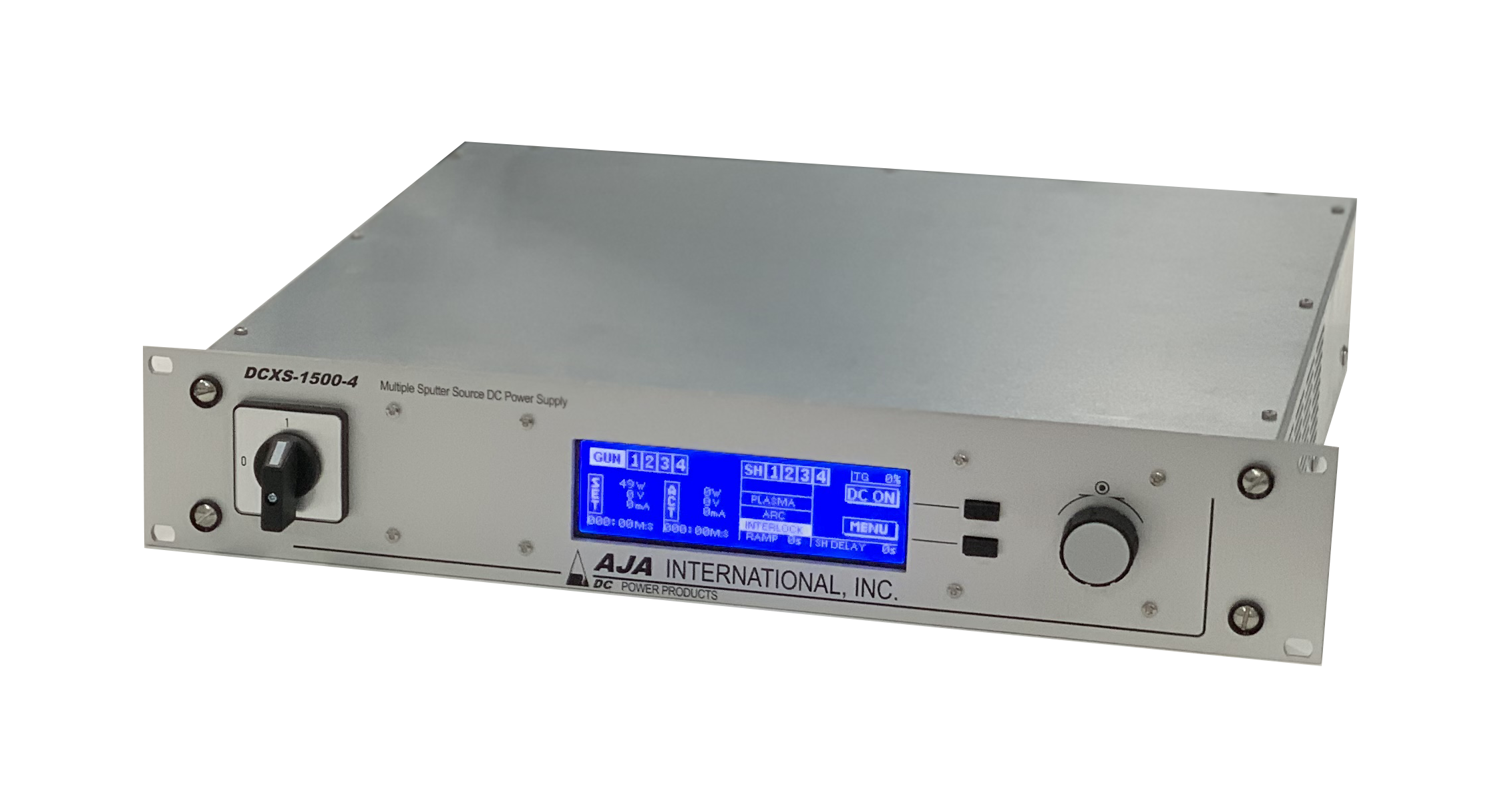

DCXS-4 DC
Generators

  • 750 W and 1500 W models available

  • Integral 4 way switchbox inside

  • 0-1000VDC Output Voltage

  • 0-1 Amp (750)/0-2 Amps (1500) Output Current

  • Intuitive interface specifically for magnetron sputtering

  • Programmable with power limits, ramping, timing and shutter control

  • Full 19” rack mount (3U)

DCXP Pulsed DC
Generators

  • 1500 W output power

  • 1050W in PulseDC mode

  • 0-1000VDC Output Voltage

  • 0-3 Amps Output Current

  • 10-300 kHz Output Frequency

  • Intuitive interface specifically for magnetron sputtering

  • Active front panel control

  • RS-232, analog interface

  • Full 19” rack mount (3U)

HiPIMS
Generators

  • 100 Amps and 600 amps models available

  • ≤ 1000 V Output Peak Voltage

  • Voltage, Current, Power, Pulse Current Regulation Modes

  • 1 to 10,000 Hz Pulse Frequency

  • 2.5 μs to 1000 μs  Pulse Duration

  • < 2 μs Arc Control: Reaction time

  • Bipolar feature available providing ion acceleration w/o the need of substrate biasing

  • RS-232 remote communication
